€281,10

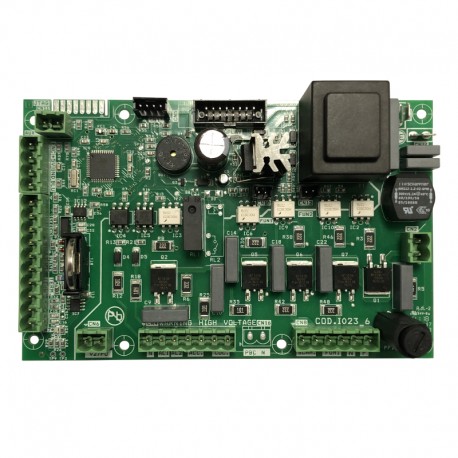

I023_6 MICRONOVA control board for pellet stoves
– 6 fastening pierces
– Extractable connexions 5.08 pitch
– Up to 600 °C smoke probe
– Temperature probe
– Boiler probe (HYDRO stoves)
– With encoder connection
– RS232 connexion for PC connection
-Voor programmatie, gelieve contact met ons op te nemen
Op voorraad
| Gewicht | 300 g |
|---|---|
| Afmetingen | 15 × 25 × 10 cm |
| Magazijnplaats |
OP710010
I023_6 MICRONOVA card, for thermic control, has been designed to programme and organise all features of pallet stoves IDRO and pellet stoves with CANALISED AIR (Customer has to choose which programming during the order using the curtain menu on this site) by its inputs and outputs.
The reliable operating software allows easy and flexible programming of all devices that are connected to the card. The I023_5 can replace all themo-controller of almost all sold stoves.
It also has available some advanced skills that are assigned to the technician who can insert working parameters by the display keyboard or by the computer using the RS232 SERAMI interface or the SeramiNet software.
The control panel 14710011 consents to set operating parameters, to enter two levels by a password and to act on working state shown by display.
– User menu enables to change parameters as switching ON/OFF, fan control, chrono-thermostat and clock settings, working temperature control, pellet loading, brazier cleaning, final cleaning and alarm reset.
– The technician menu acts on advanced parameters as thermic calibration, pellet loading, output and input activation deactivation, resetting of counter memories, smoke probe calibration, etc.
– The controller displays all information about operating state, clock, room temperature, menu levels, weekly programmes, alarms.
Equipped with chrono-thermostat and IR remote control receiving card in order to regulate the switching ON/OFF and combustion power.
Set up for the following accessories:
cod. op710011 – LCD F047_2 keyboard
cod. op710014 – C025_7 LED display keyboard (Only for stoves AIR)
cod. op710012 – IR remote control
cod. op710013 – connecting cable for key-board card
cod. op708006 – smoke probe
cod. op708003 – room temperature probe
cod. op708004 – boiler probe
cod. op709001 – 2 contacts terminal block plug with 5.08 mm pitch
cod. op709003 – 4 contacts terminal block plug with 5.08 mm pitch
cod. op709005 – 6 contacts terminal block plug with 5.08 mm pitch
cod. op709006 – 7 contacts terminal block plug with 5.08 mm pitch
cod. 14709009 – 10 contacts terminal block plug with 5.08 mm pitch
For stoves
– ARCE ref. 1611908785 mod. Circle – Circle Canalizzata Plus – Circle Canalizzata – Circle Idro Large – Circle Idro Medium – Circle j Plus – Circle j – Circle Plus – Hetna – Hetna j Plus – Hetna j – Hetna Plus – Lexia – Lexia j Plus – Lexia j – Lexia Plus – Smart – Smart j (no firmware)
– BESTOVE ref. 50212 mod. Still – Rio – K-Still (no firmware)
– CADEL Ref. COM0231
– CADEL Ref. 4D14512024
– CADEL Ref. 4D14513064
– CADEL Ref. 4D14513064B
– CADEL Ref. 4D14512023 — 4D14513064A Mod. Cloe – Cloe 3 – Doge 3 Plus – Eolo – Family – Lean Plus – Martina – Prince 3 – Sfera – Sfera Plus – Sire Plus – Solaris – Square – Vanessa – Venus – Venus 3 Plus – Wall (no firmware)
– CLAM ref. 05010121 Mod. Pulsar – Pratico silver
– CLAM ref. 05010221 Mod. Brooklyn – Parigi – Londra – New York – Parigi – Venezia – Vienna
– ECOTECK ref. 55229 – 55231 (no firmware)
– KARMEK ONE ref. SML516-00AA mod. Alice – Amelia – Greta – Marylin (no firmware)
– QLIMA ref. 410001B mod. Delfina III 90 M-line (no firmware)
– RAVELLI ref. 55229 mod. Lisa – Kristina – Gloria – Elena – Sara – Sofia – Francesca – Alessia – Monica – Arianna – Erika – Veronica – Martina – Ecovision – Laura – Elena – 500 – 900 – 901 – Serena – Ilaria – Snella – R70 – R120 (no firmware)
– RAVELLI ref. 55231 mod. Genova – Pisa (no firmware)
