€230,60

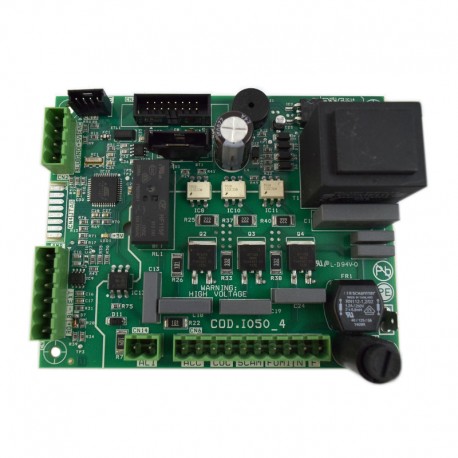

I050 MICRONOVA control board for pellet stoves
– 4 fastening pierces
– Up to 600 °C smoke probe
– Temperature probe
– With encoder connection
– RS232 connexion for PC connection
Op voorraad
| Gewicht | 10 g |
|---|---|
| Afmetingen | 10 × 10 × 10 cm |
| Magazijnplaats | GC3 |
| Fabrikantnummer | 0 |
| Produkt Eigenschap | 0 |
PI050_A04 MICRONOVA card, for thermic control, has been designed to programme and organise all features of pallet stoves CANALISED AIR (display customer has to choose which programming during the order using the curtain menu on this site) by its inputs and outputs.
The reliable operating software allows easy and flexible programming of all devices that are connected to the card. The I050 can replace all themo-controller of almost all sold stoves.
It also has available some advanced skills that are assigned to the technician who can insert working parameters by the display keyboard or by the computer using the RS232 SERAMI interface or the SeramiNet software.
The control panel consents to set operating parameters, to enter two levels by a password and to act on working state shown by display.
– User menu enables to change parameters as switching ON/OFF, fan control, working temperature control, pellet loading, brazier cleaning, final cleaning and alarm reset.
– The technician menu acts on advanced parameters as thermic calibration, pellet loading, output and input activation deactivation, resetting of counter memories, etc.
– The controller displays all information about operating state, room temperature, menu levels, alarms.
Set up for the following accessories:
cod. 14710011 – LCD F047_2 keyboard
cod. 14710014 – tasiera LED C025_7
cod. 14710012 – IR remote control
cod. 14710013 – connecting cable for key-board card
cod. 14708006 – smoke probe
cod. 14708003 – room temperature probe
For stoves
– CADEL Ref. COM0231-2
– CADEL Ref. 4D14512022
– DEVILLE ref. D0026729 D0026585 mod. Armen – Cordouan (no firmware)
– DEVILLE ref. D0026718 D0026585 mod. Faraman (no firmware)
– DEVILLE ref. D0026778 D0026585 mod. Frehel – Kereon 2 – Penlan – Penmen – Sambro (no firmware)
– DEVILLE ref. D0026777 D0026585 mod. Kereon (no firmware)
– DEVILLE ref. D0026726 D0026585 mod. Kermorvan (no firmware)
– DEVILLE ref. D0026525 D0026585 mod. Lohic (no firmware)
– DEVILLE ref. D0026090 D0026585 mod. Vestalis (no firmware)
– ECOTECK ref. 55116 (no firmware)
– EMAFLAM ref. R2600519 mod. Alma – Citra – Diama – Hema – Sandro (no firmware)
– KARMEK ONE ref. SML510-01AA mod. Barcellona – Berlino – Elena – Linda – Parigi – Roma – Samantha – Siena – Stoccolma – Venezia (no firmware)
– RAVELLI ref 55116 mod. Francesca – Monica – Sofia – Silvia – Alice 2003 – Silvia 2002 x 14710014 (no firmware)
